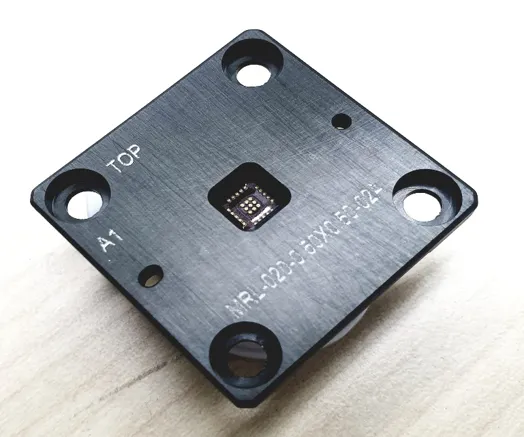

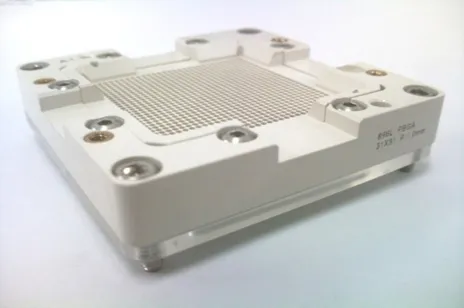

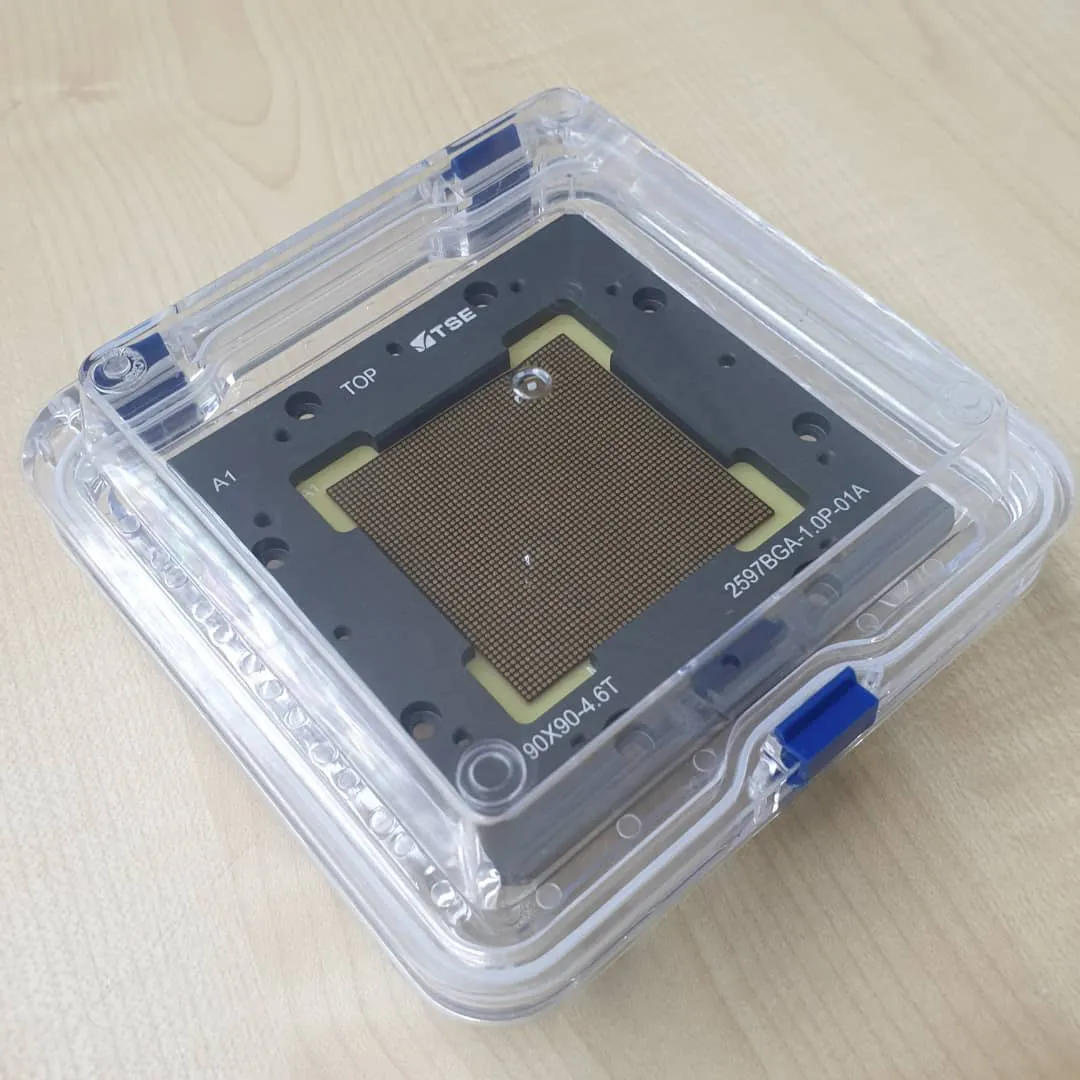

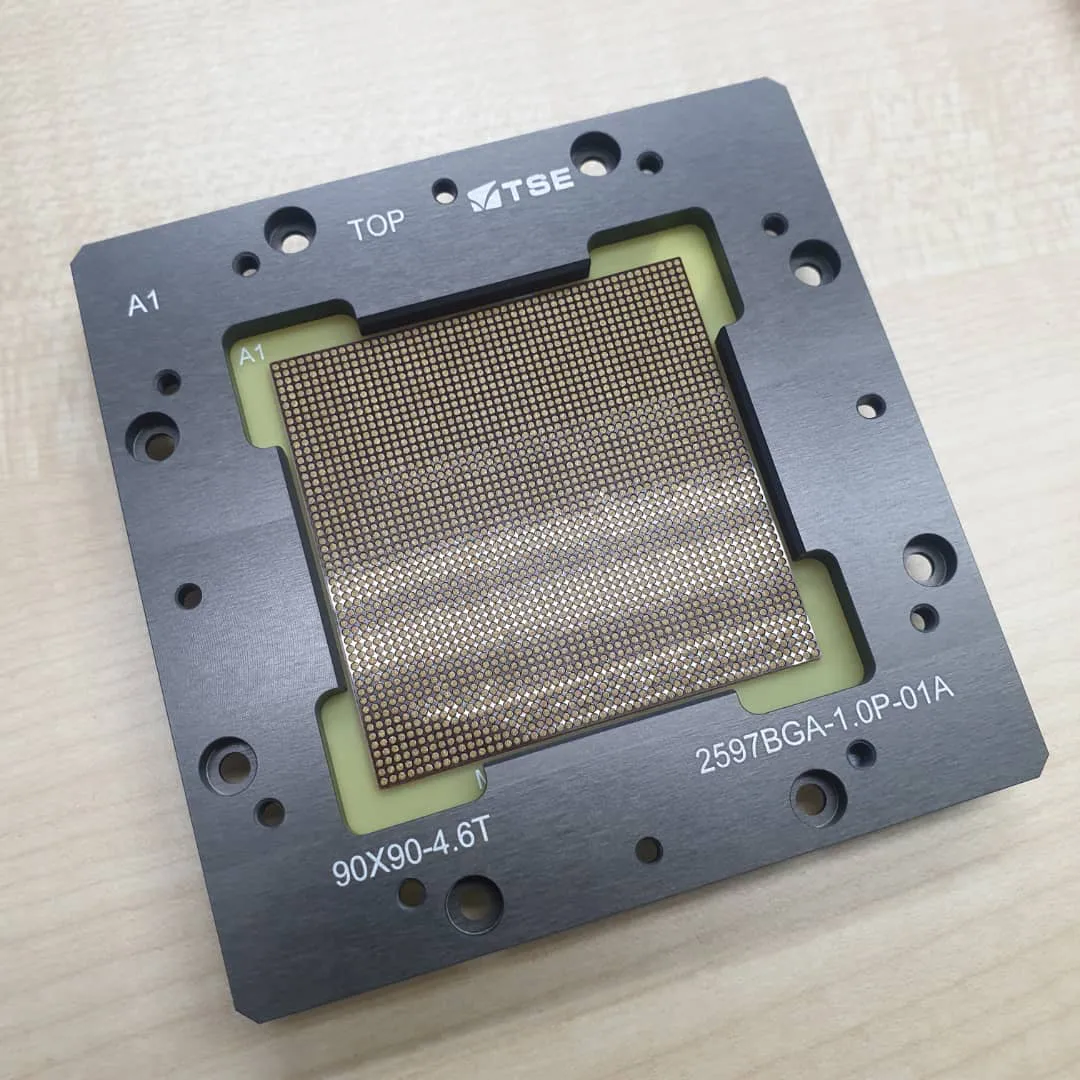

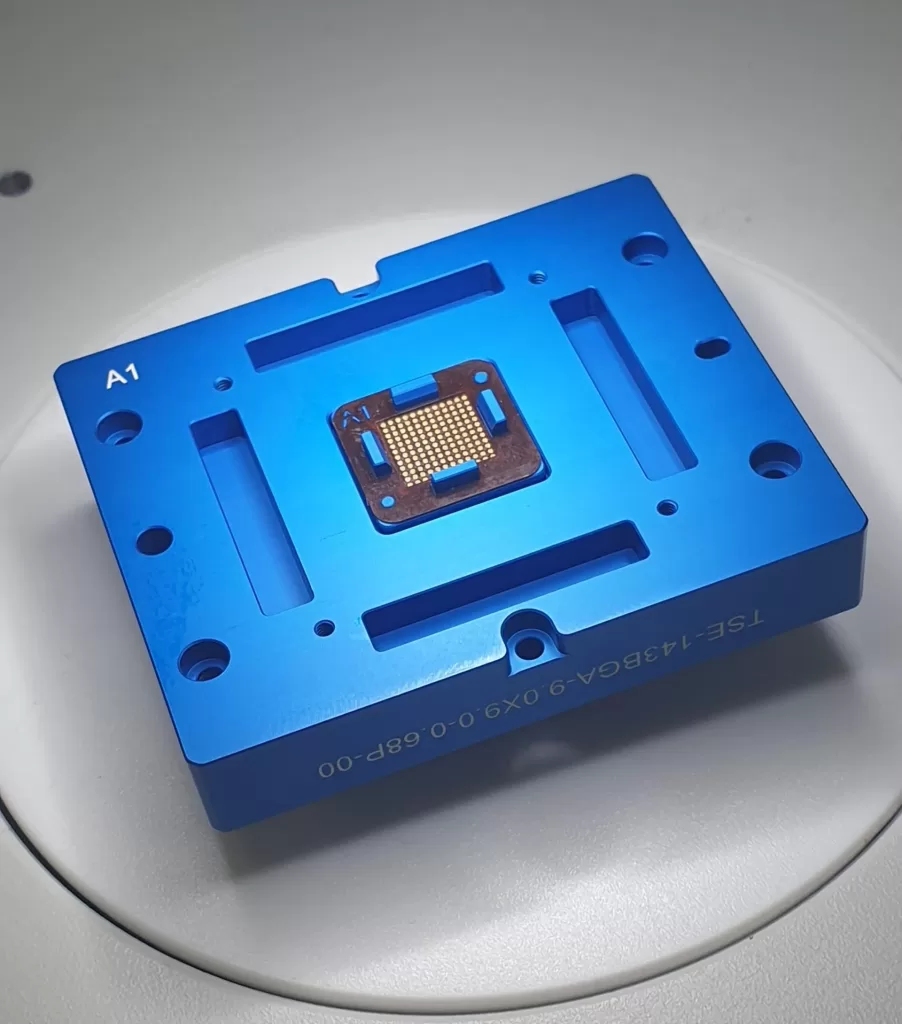

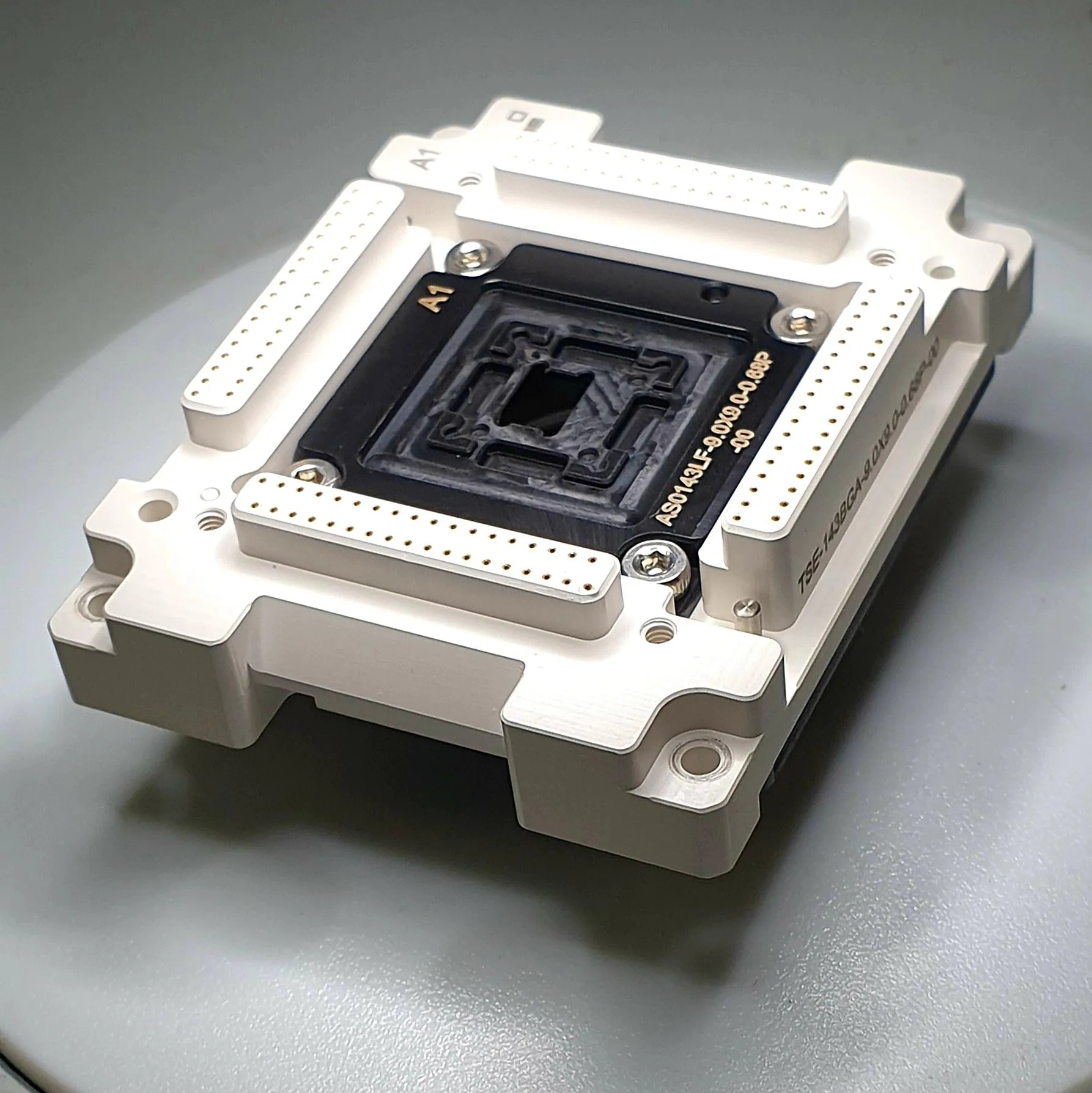

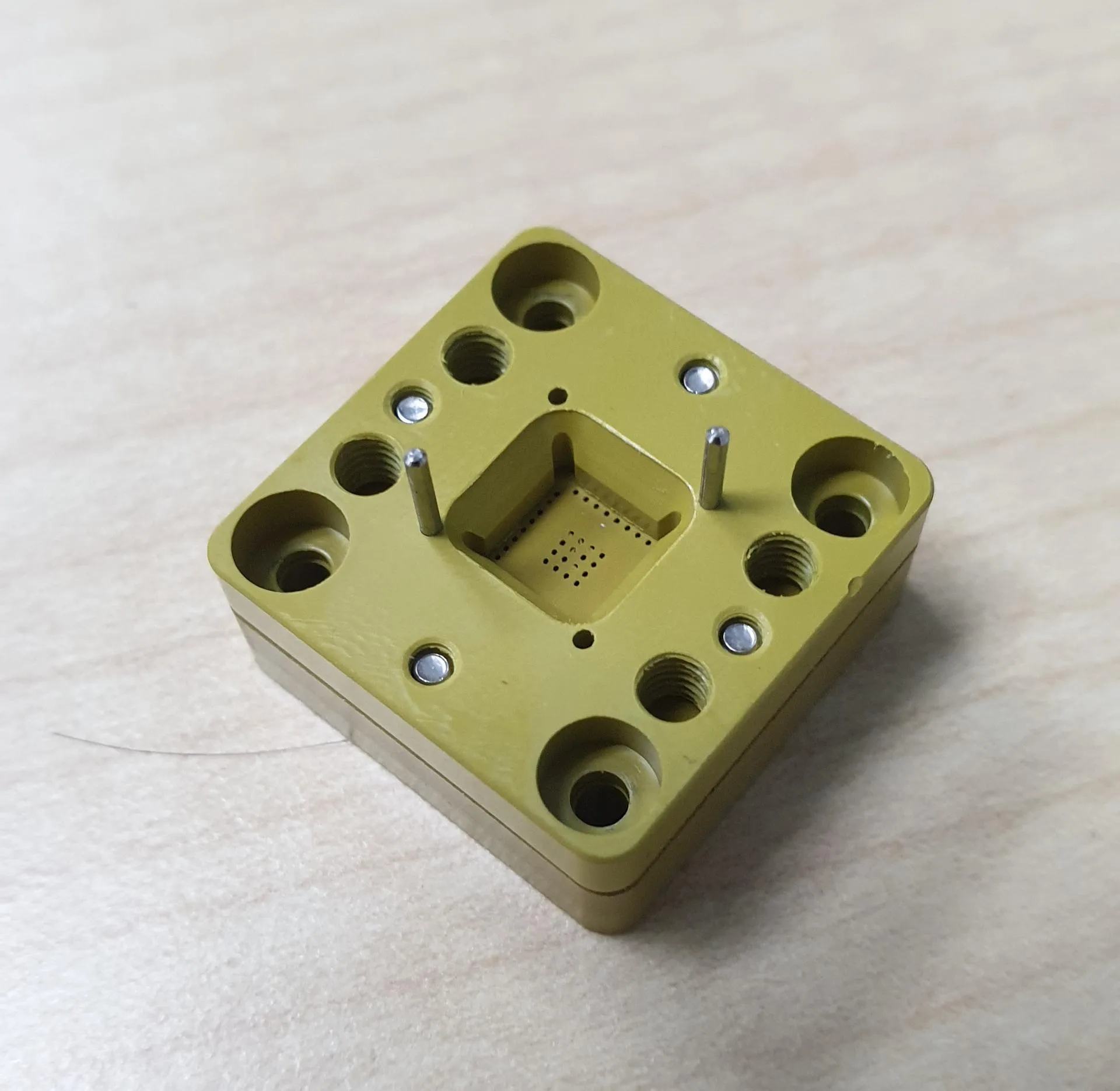

Semiconductor Socket
Semiconductor Socket & MRC Rubber Contactor
- Ability to support all packages sizes
- Able to manage up to a minimum pitch of 0.25mm & low profile height of 0.5mm
- Ability to custom design to suit different test handlers
- Various types of hand jig (lid) to suit to function
- Temperature Tri-Temp ( 150 and -40 )

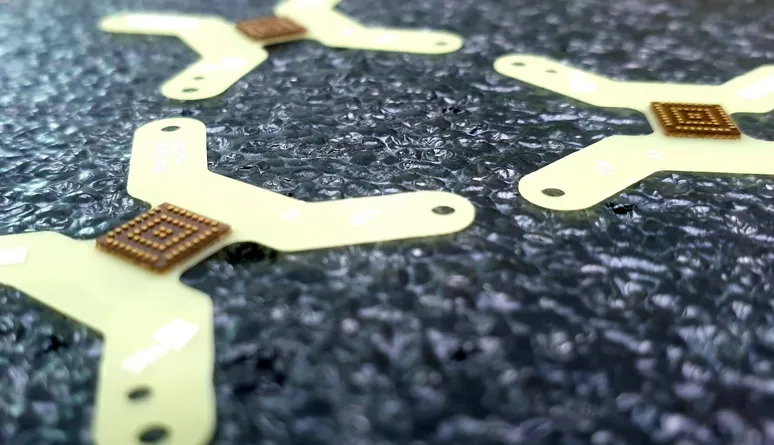

MRC (Membrane Rubber Contactor)
Feature
- Applicable: All the Above Handler

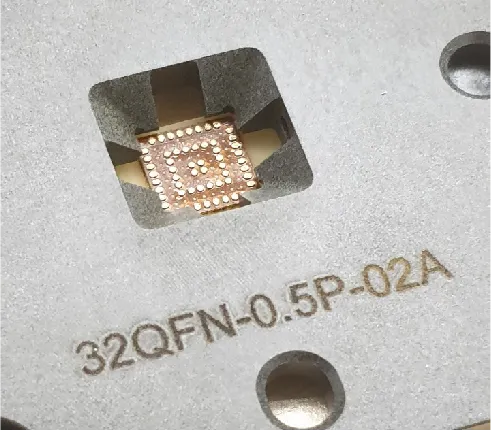

- Customize to design sockets for BGA/QFN/MLP
- Lifespan: 200K+
- Pitches: All pitch types, 0.3 and above
- Temperature: -55degC to +150degC
- MEMs Particle (Ni-Alloy + Au)
- Self Inductance: 0.080Nh
- Max. Continues Current: 2A
- Bandwidth: < 30.5Ghz
Advantage
- No Ball Damage
- Much Higher Electrical Bandwidth than Pogo
- Much Higher Cost Effectiveness than Pogo

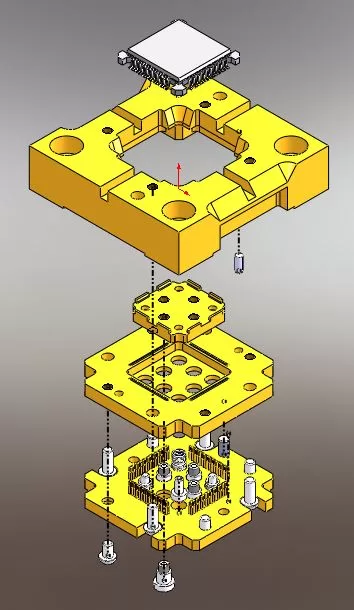

Simple Socket Structure

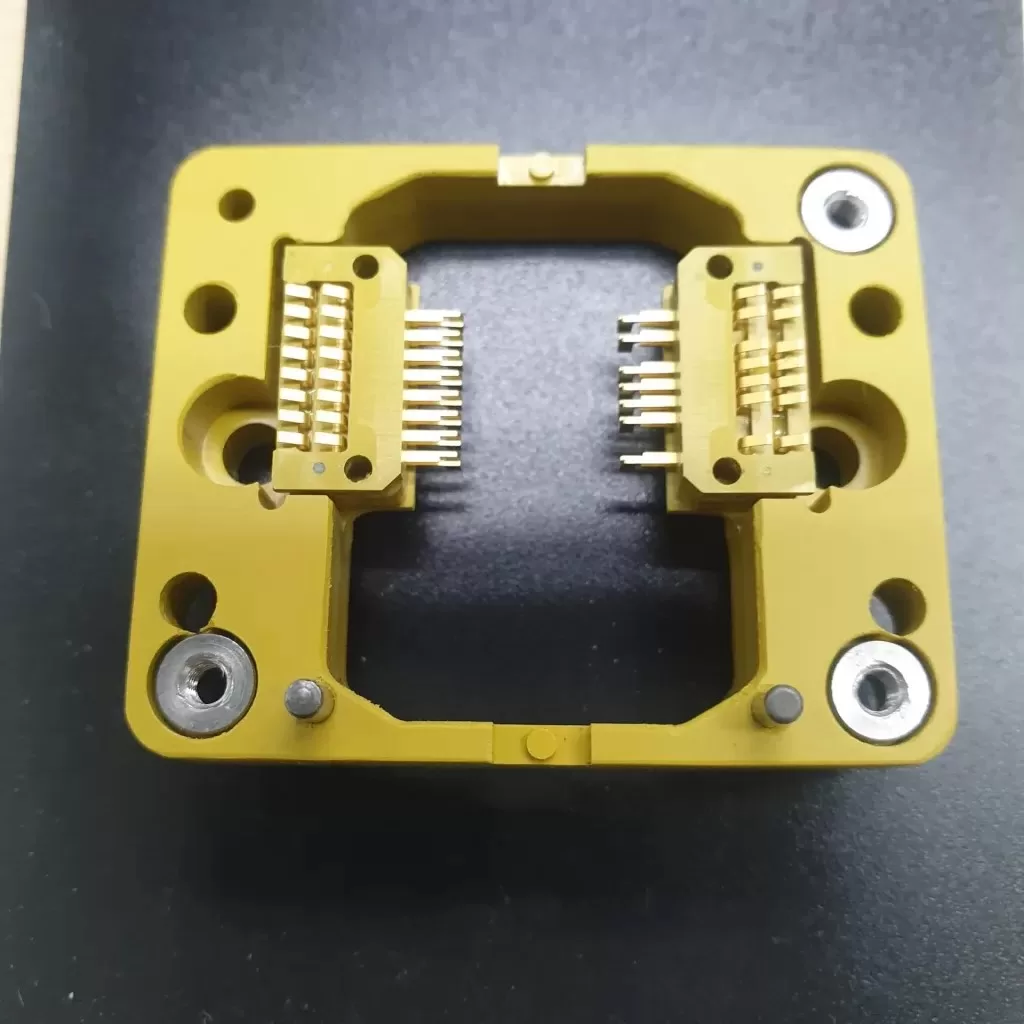

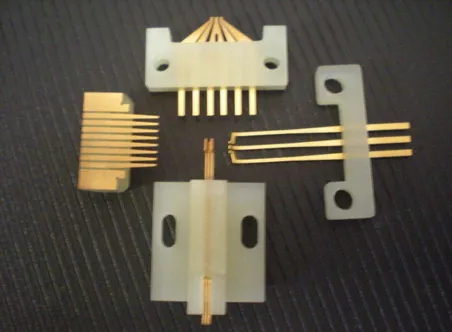

Kelvin Sockets
Kelvin Contact Testing is unique solution when repeatable measurements of low resistance around 1m Ω are required.
